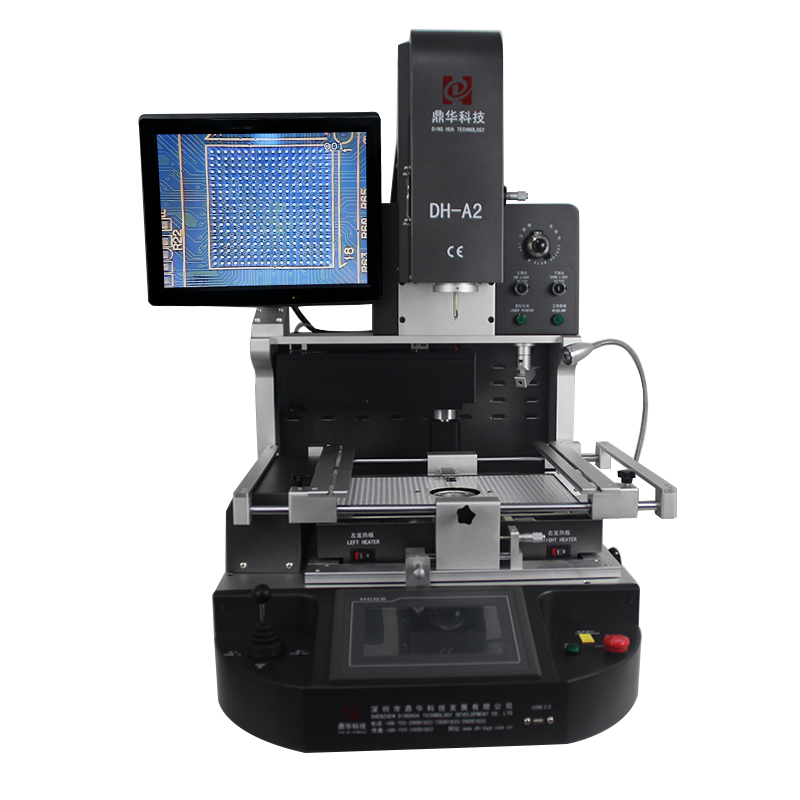

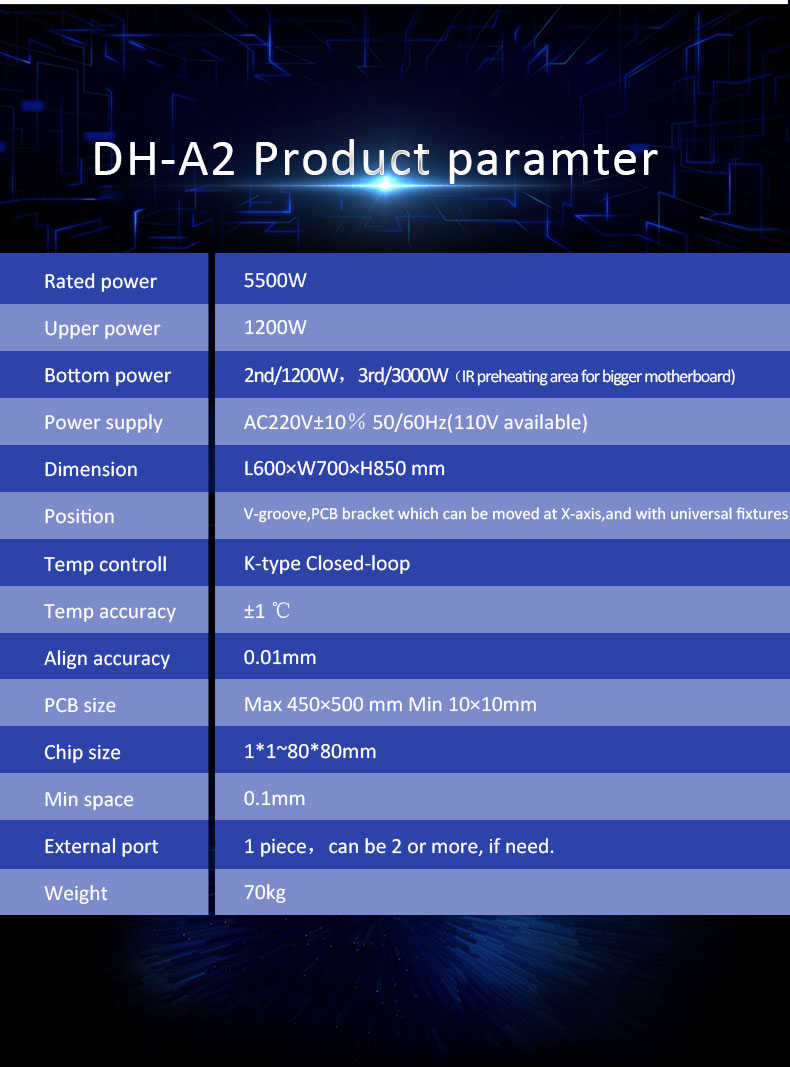

| Rataed power | 5500 |
| Upper power | 1200W |
| Lower power | 1200W |
| IR power | 3000W |
| Dimension | L600*W700*H850mm |

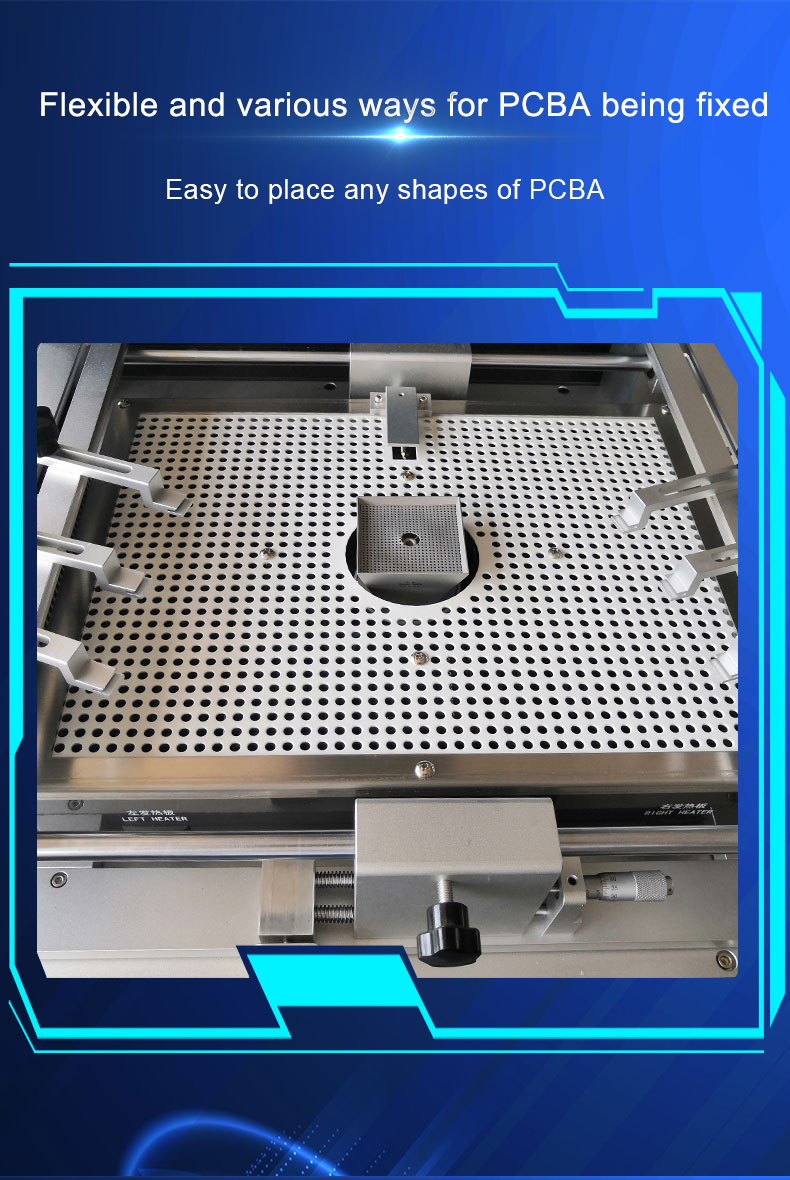

| PCB positioning | V-groove, PCB bracket moved at X-axis, and with universal fixtures |

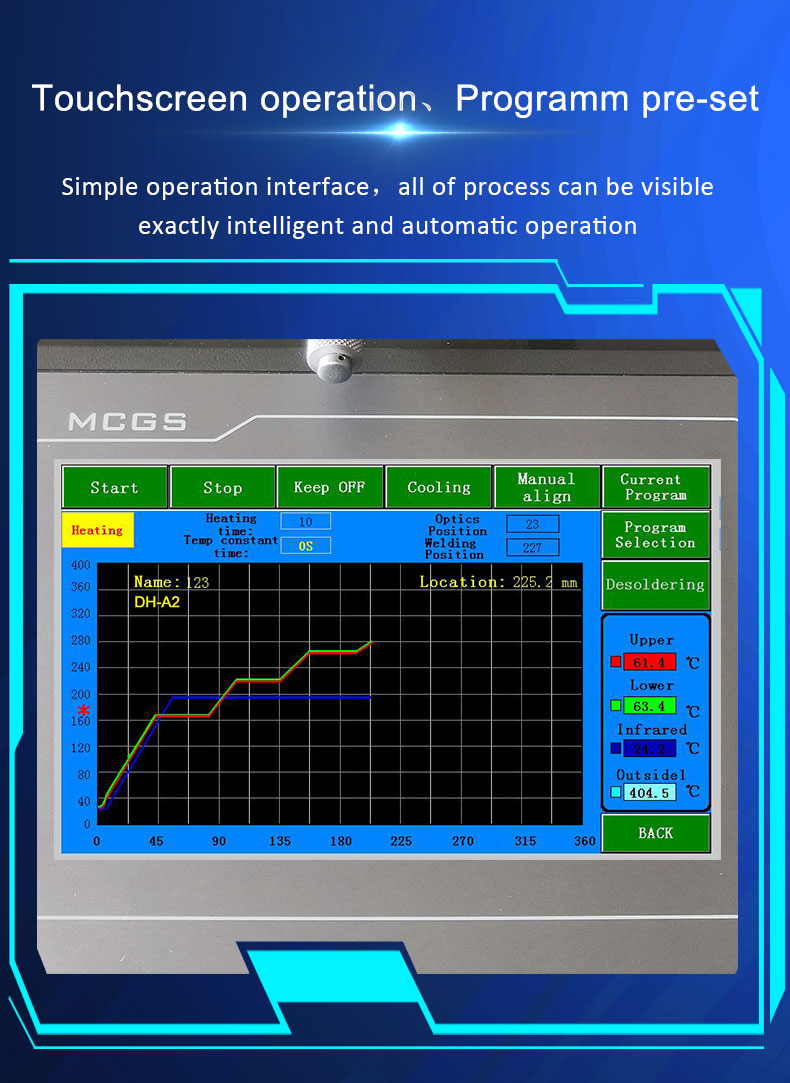

| Temperature controll | K-type, cloosed-loop and PID |
| Temperature accuracy | ± 1 ℃ |

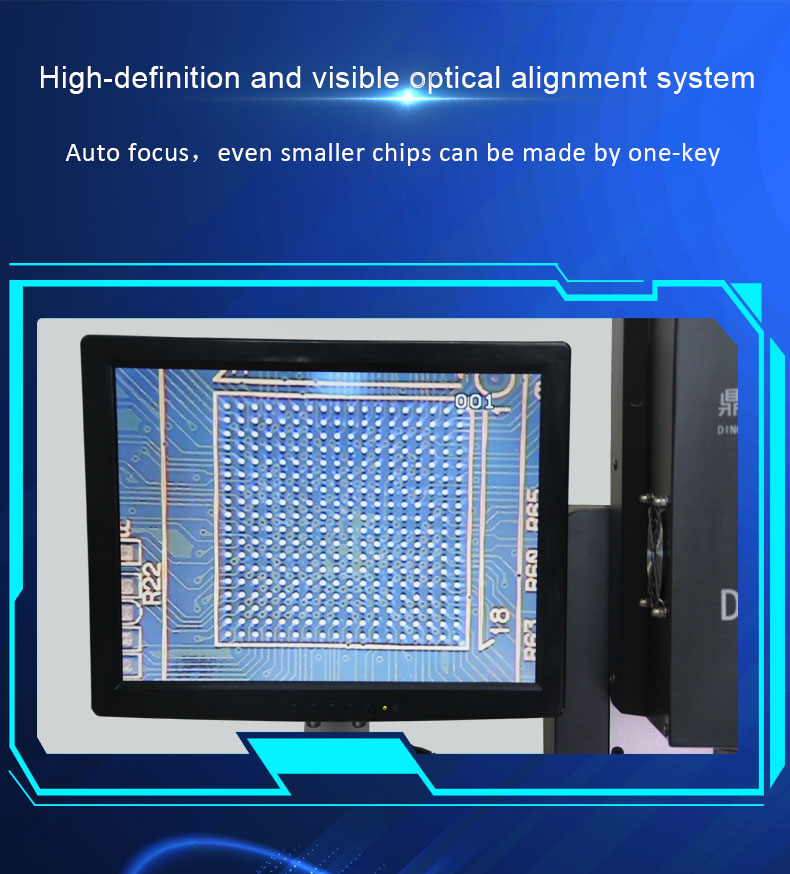

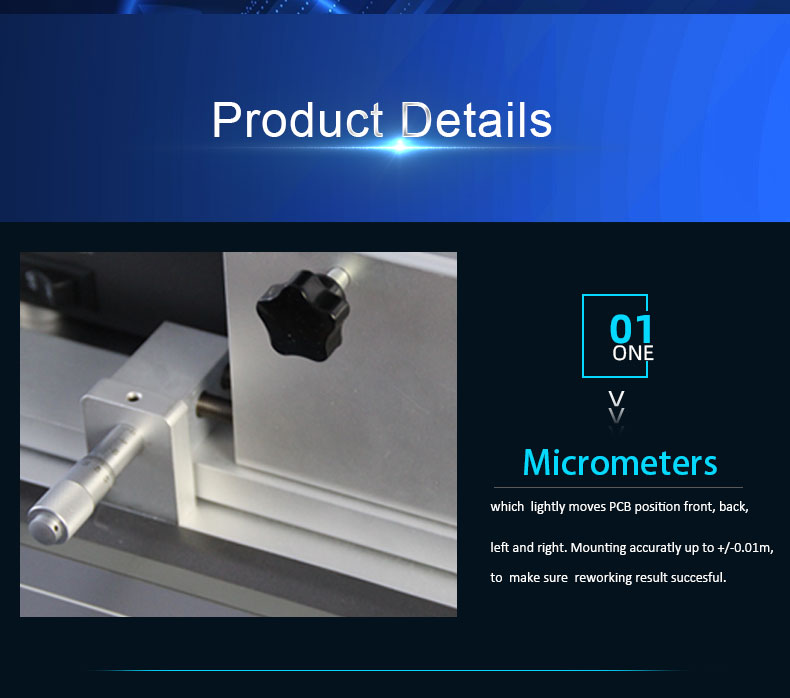

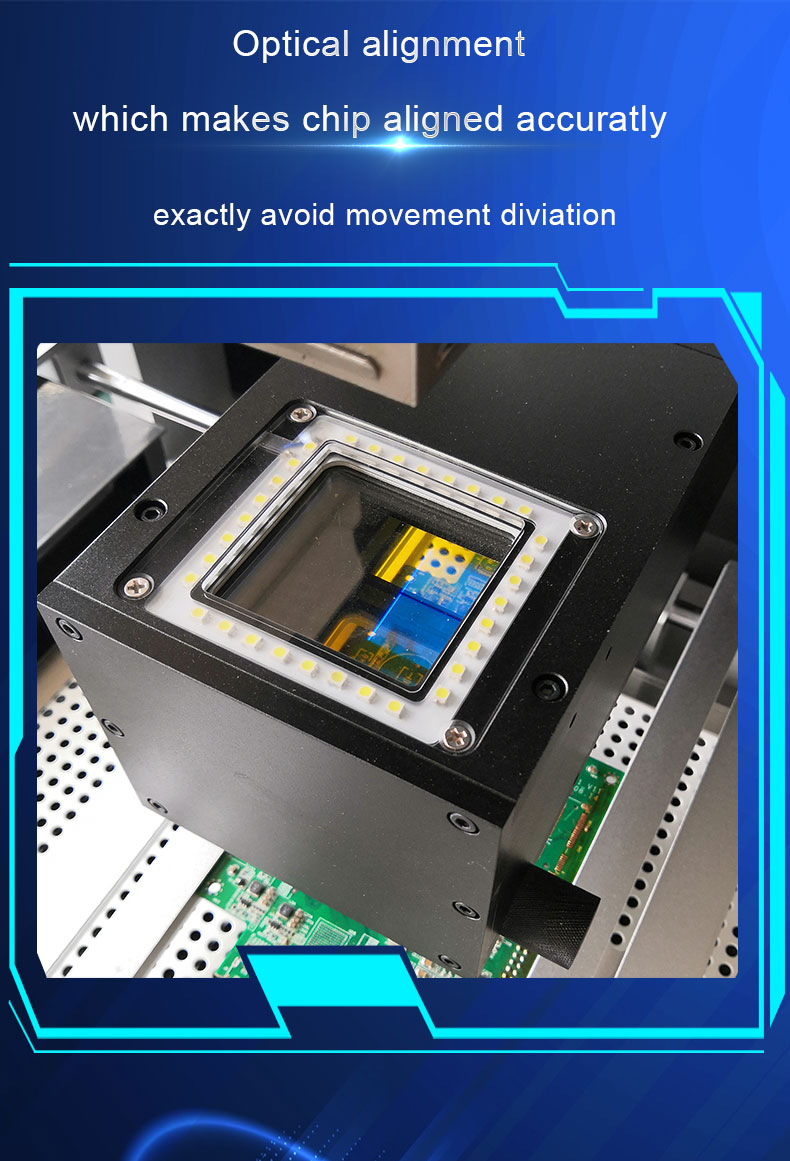

| Alignment system | 0.01mm |

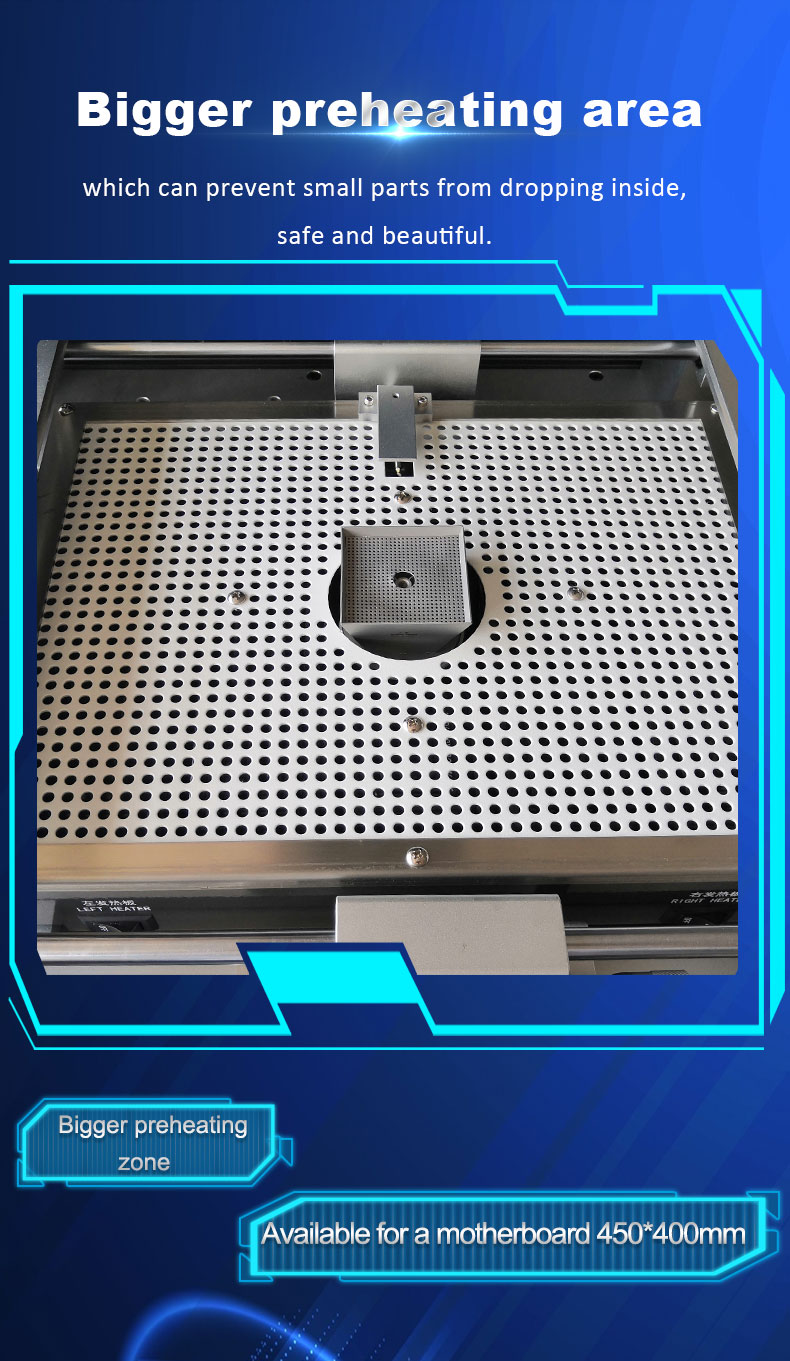

| PCB size | Max 450*500mm Min 10*10mm |
| Chip size | 1*1~80*80mm |
| Min space | 0.1mm |
| External temperatrue port | 1 pcs (optional) |
| Weight | 70kg |
